產品牌號
Produst Grades |
TN-2 |
TN-3 |
TN-4 |
TN-5 |
TN-6 |
TN-7 |
TN-7H |
TN-8L |
TN-8 |
TN-8H |
TN-9 |
TN-9H |
TN-10 |
TN-10H |
TN-11L |
TN-11 |
TN-12L |
TN-12 |
剩餘磁感位強度 Br
Residual Induction |
(mT)
(KGs) |
200-300
2.0-3.0 |
370-420
3.5-4.5 |
420-470
4.0-5.0 |
480-520
4.5-5.5 |
550-600
5.5-6.0 |
600-650
6.0-6.5 |
550-600
5.5-6.0 |
600-650
6.0-6.5 |
600-650
6.0-6.5 |
600-650
6.0-6.5 |
650-700
6.5-7.0 |
650-700
6.5-7.0 |
650-700
6.5-7.0 |
650-700
6.5-7.0 |
680-730
6.8-7.3 |
680-720
6.8-7.2 |
720-780
7.2-7.8 |
700-750
7.0-7.5 |
矯頑力 Hcb
Coercive Force |
(KA/m)
(KOe) |
160-240
2.0-3.0 |
200-280
2.5-3.5 |
200-280
2.5-3.5 |
200-320
2.5-4.0 |
280-400
3.5-5.0 |
320-400
4.0-5.0 |
320-440
4.0-5.5 |
320-400
4.0-5.0 |
360-440
4.5-5.5 |
440-520
5.5-6.5 |
360-480
4.5-6.0 |
360-480
4.5-6.0 |
360-480
4.5-6.0 |
400-480
5.0-6.0 |
360-440
4.5-5.5 |
400-480
5.0-6.0 |
360-440
4.5-5.5 |
360-520
4.5-6.5 |
內稟矯頑力 Hcj
Intrinsic Coercve Force |
(KA/m)
(KOe) |
400-560
5.0-7.0 |
520-600
6.5-7.5 |
520-600
6.5-7.5 |
520-640
6.5-8.0 |
560-680
7.0-8.5 |
640-720
8.0-9.0 |
960-1120
12.0-14.0 |
560-640
7.0-8.0 |
640-720
8.0-9.0 |
800-960
10.0-12.0 |
640-720
8.0-9.0 |
720-880
9.0-11.0 |
680-760
8.5-9.5 |
880-1040
11.0-13.0 |
520-600
6.5-7.5 |
680-800
8.5-10.0 |
520-600
6.5-7.5 |
640-800
8.0-10.0 |
最大磁能積 (BH)max
Max.Energy Product |
(KJ/m3)
(MGOe) |
12-24
1.5-3.0 |
20-28
2.5-3.5 |
28-36
3.5-4.5 |
36-44
4.5-5.5 |
44-52
5.5-6.5 |
52-60
6.5-7.5 |
52-60
6.5-7.5 |
60-68
7.5-8.5 |
60-68
7.5-8.5 |
60-68
7.5-8.5 |
64-72
8.0-9.0 |
64-72
8.0-9.0 |
72-80
9.0-10.0 |
72-80
9.0-10.0 |
76-84
9.5-10.5 |
76-84
9.5-10.5 |
84-92
10.5-11.5 |
84-90
10.5-11.3 |
可逆磁導率 (μrec)
Permeability |
(μH/M) |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
1.20 |
平均可逆溫度系数
Temperature Coefficient
of Br |
(%/°C) |
-0.10 |
-0.10 |
-0.11 |
-0.11 |
-0.10 |
-0.12 |
-0.12 |
-0.12 |
-0.12 |
-0.13 |
-0.10 |
-0.10 |
-0.10 |
-0.13 |
-0.10 |
-0.10 |
-0.11 |
-0.10 |
飽和磁化場 Hs
Magnetizing Field to
＞95％ Saturation |
(KA/m)
(KOe) |
≧1600
≧20 |
≧1600
≧20 |
≧1600
≧20 |
≧1600
≧20 |
≧1600
≧20 |
≧1600
≧20 |
≧1800
≧22 |
≧1600
≧20 |
≧1600
≧20 |
≧2000
≧25 |
≧1600
≧20 |
≧1600
≧20 |
≧1600
≧20 |
≧2000
≧25 |
≧1600
≧20 |
≧1600
≧20 |
≧1600
≧20 |
≧1600
≧20 |
最大工作溫度
Max.Operating
Temperature |
(°C) |
150 |
150 |
150 |
150 |
160 |
160 |
180 |
150 |
160 |
180 |
160 |
180 |
150 |
180 |
150 |
160 |
150 |
160 |
密度p
Density |
(g/cm3) |
4.0-5.0 |
4.0-5.0 |
4.0-5.0 |
5.0-5.5 |
5.5-5.8 |
5.8-6.0 |
5.8-6.0 |
5.8-6.0 |
5.8-6.0 |
5.8-6.0 |
5.8-6.0 |
5.8-6.0 |
6.0-6.2 |
6.0-6.2 |
6.0-6.4 |
6.0-6.4 |
6.0-6.4 |
6.0-6.4 |

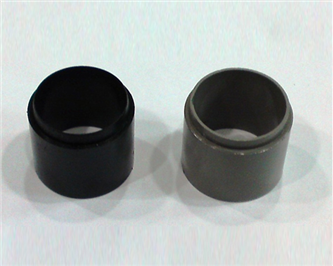

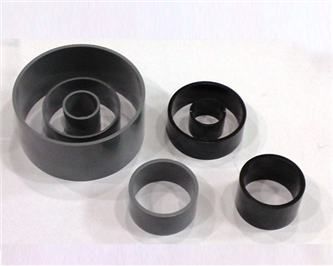

Bonded NdFeB
